SF Series Harmonic Reducer | Self-Aligning Drive

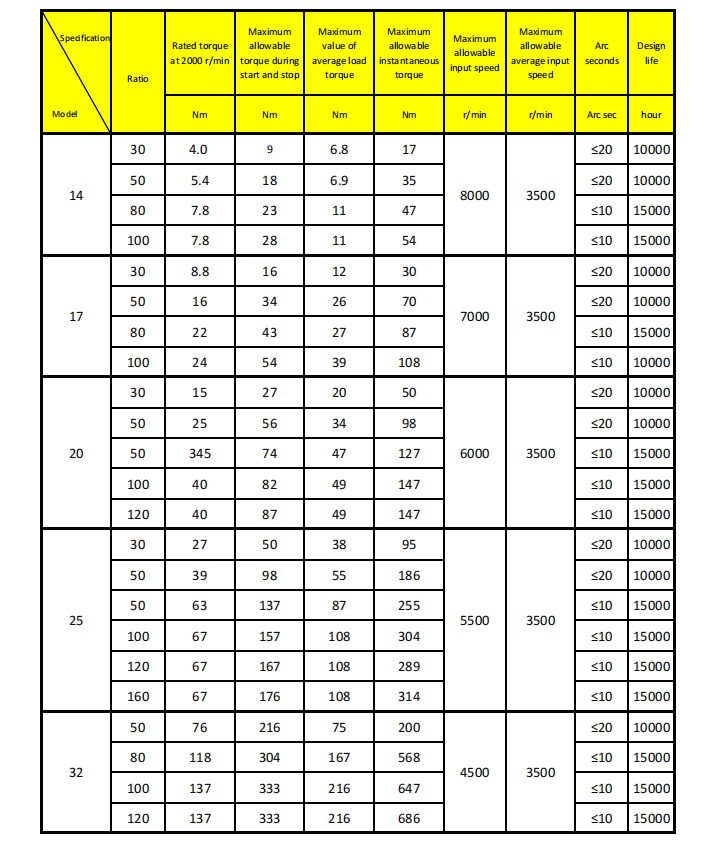

SF Series Harmonic Reducer – Performance Parameters

Model	Ratio	Rated Torque at 2000 r/min (Nm)	Max Allowable Torque During Start/Stop (Nm)	Max Value of Average Load Torque (Nm)	Max Allowable Instantaneous Torque (Nm)	Max Allowable Input Speed (r/min)	Max Allowable Average Input Speed (r/min)	Arc Seconds (Arc sec)	Design Life (hour)
14	30	4.0	9	6.8	17	8000	3500	≤20	10000
	50	5.4	18	6.9	35			≤20	10000
	80	7.8	23	11	47			≤10	15000
	100	7.8	28	11	54			≤10	15000
17	30	8.8	16	12	30	7000	3500	≤20	10000
	50	16	34	26	70			≤20	10000
	80	22	43	27	87			≤10	15000
	100	24	54	39	108			≤10	10000
20	30	15	27	20	50	6000	3500	≤20	10000
	50	25	56	34	98			≤20	10000
	50	345	74	47	127			≤10	15000
	100	40	82	49	147			≤10	15000
	120	40	87	49	147			≤10	15000
25	30	27	50	38	95	5500	3500	≤20	10000
	50	39	98	55	186			≤20	10000
	50	63	137	87	255			≤10	15000
	100	67	157	108	304			≤10	15000
	120	67	167	108	289			≤10	15000
	160	67	176	108	314			≤10	15000
32	50	76	216	75	200	4500	3500	≤20	10000
	80	118	304	167	568			≤10	15000
	100	137	333	216	647			≤10	15000
	120	137	333	216	686			≤10	15000
